Specificaties
Please refer to the specification guide below to help you make the right choice based on your needs.
| MODEL |
2300W SERIES |
3400W SERIES |
4500W SERIES |
| FUEL TYPE |
ELECTRIC |
ELECTRIC |
ELECTRIC |

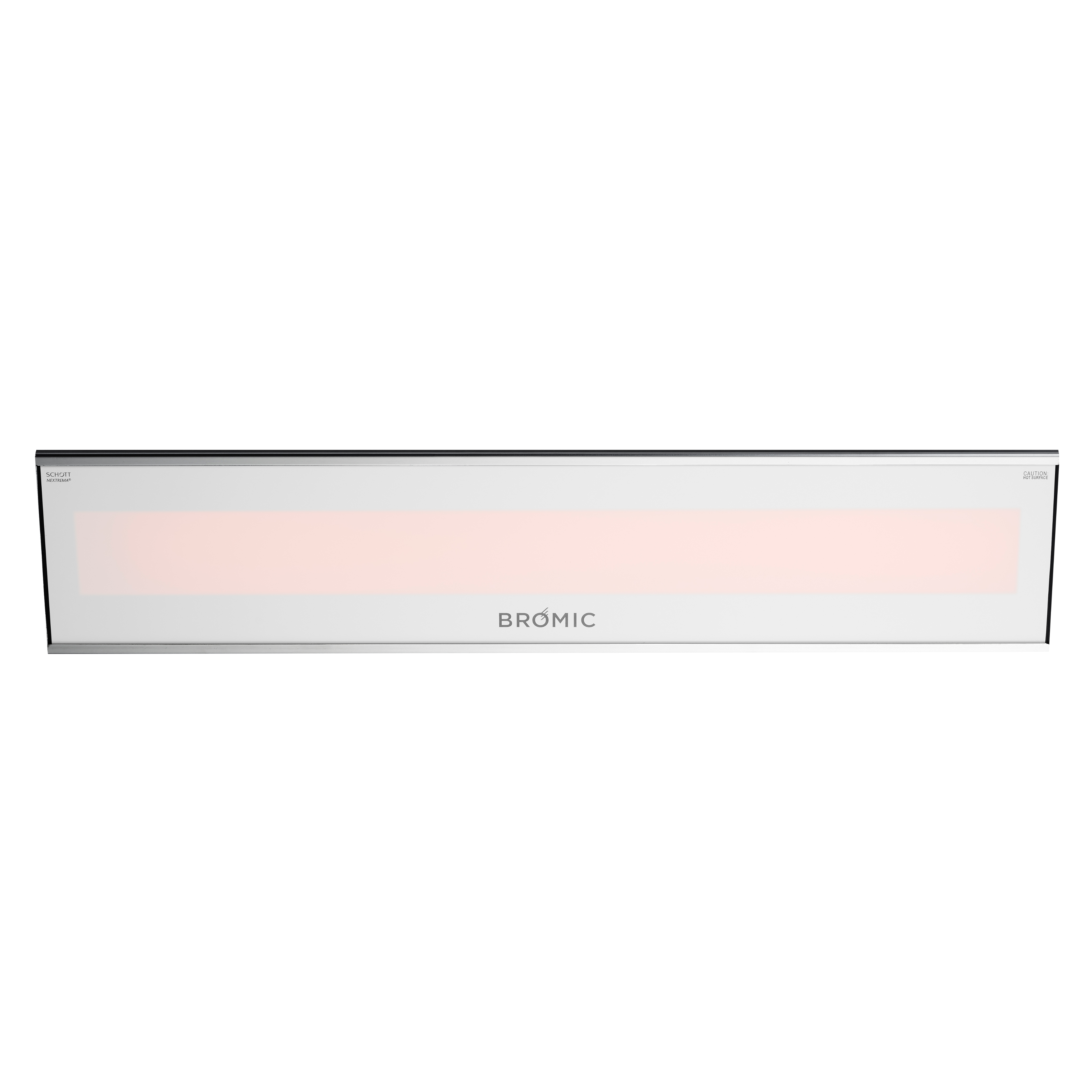

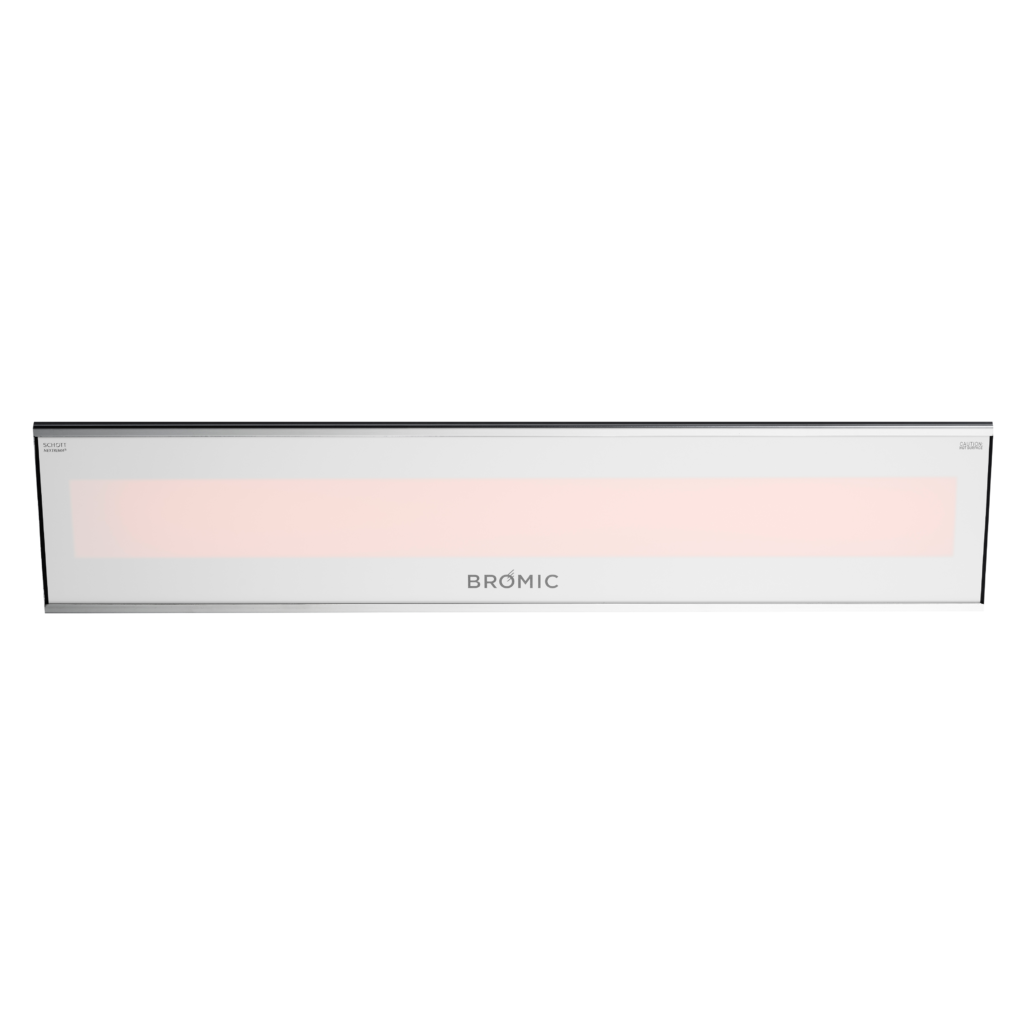

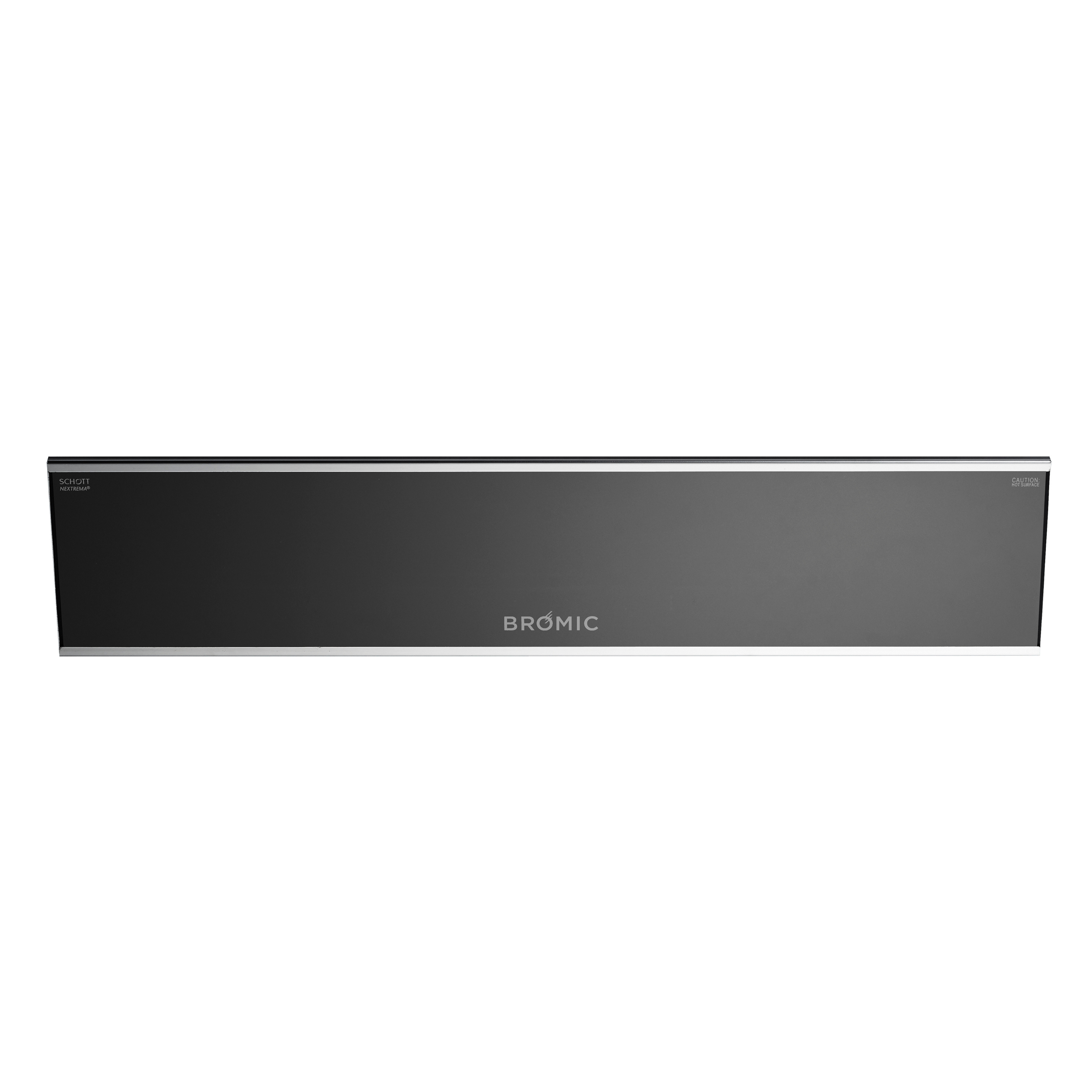

| COLOUR |

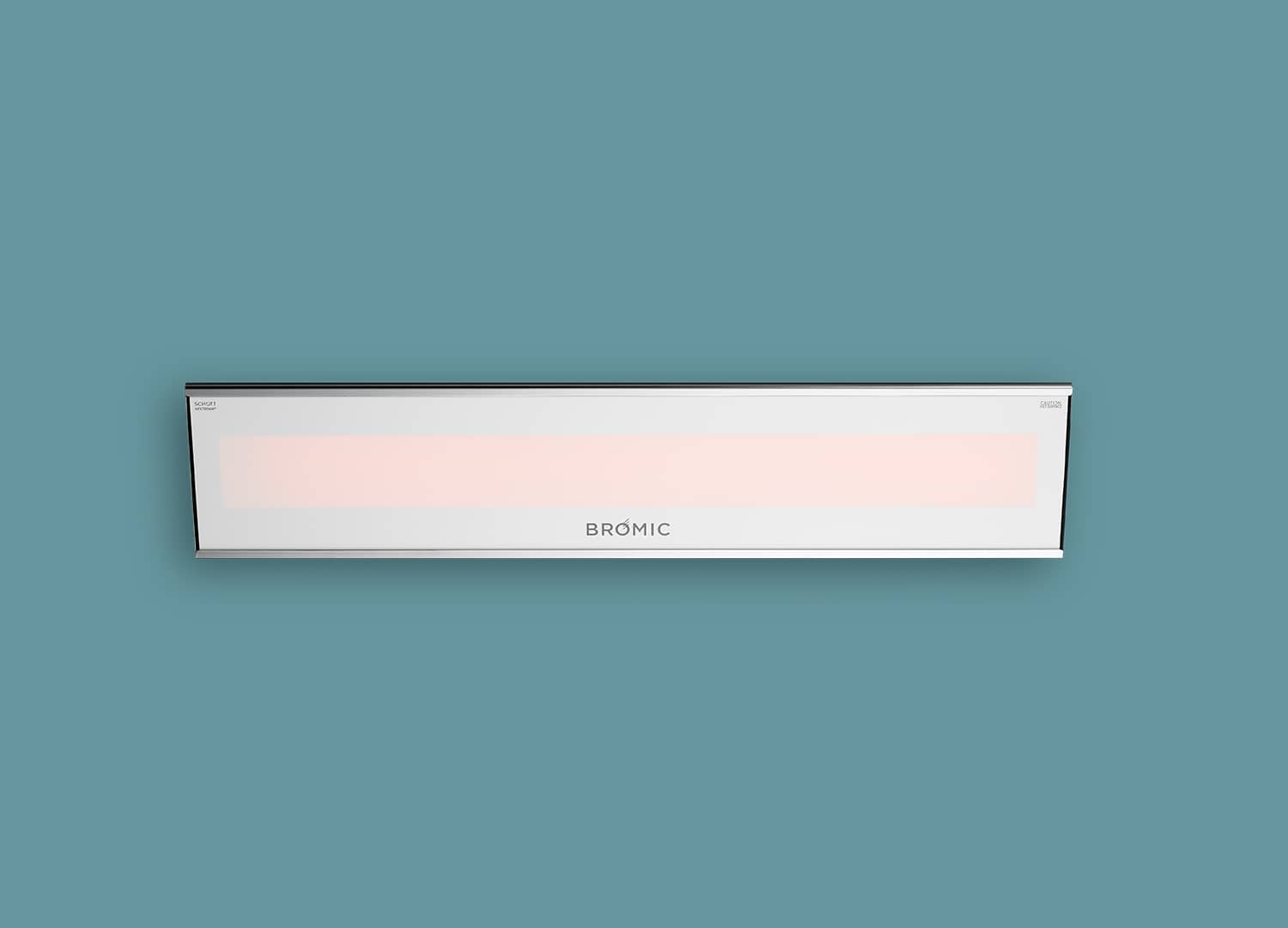

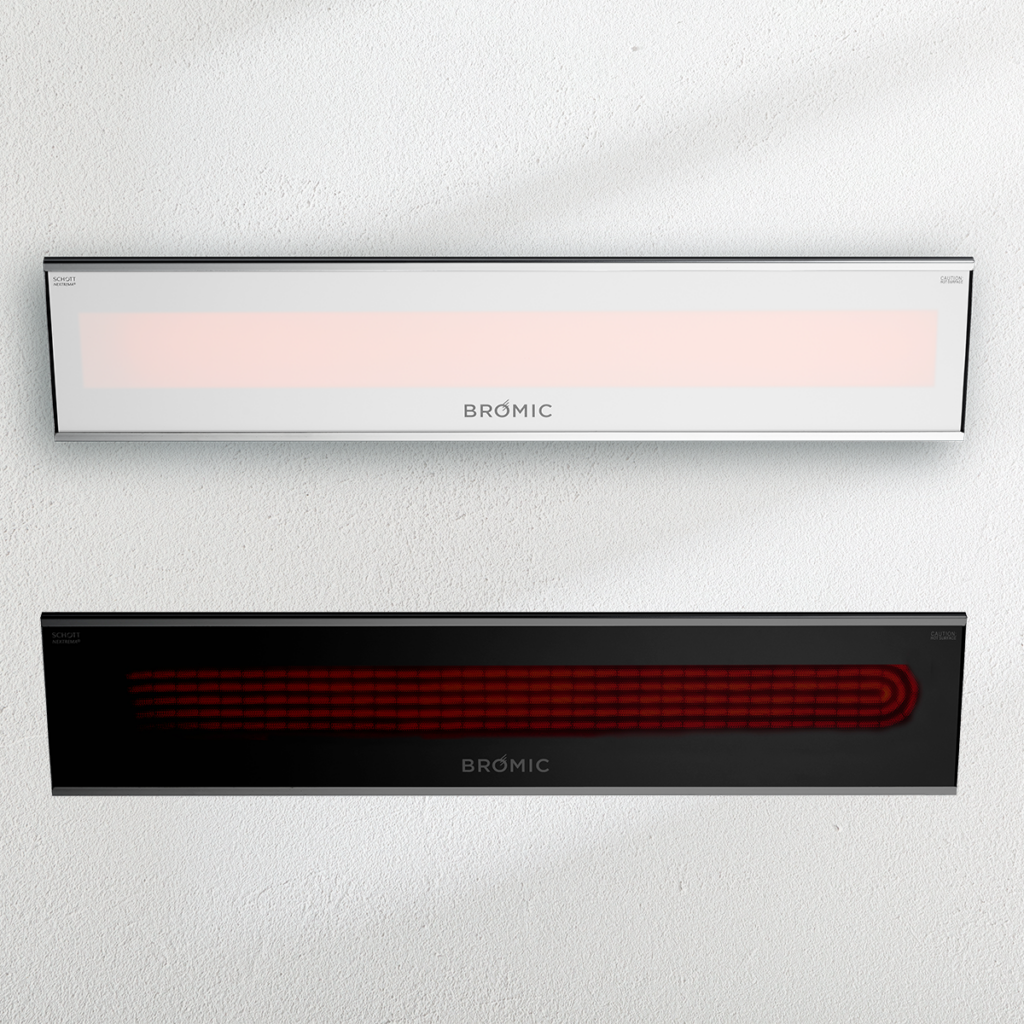

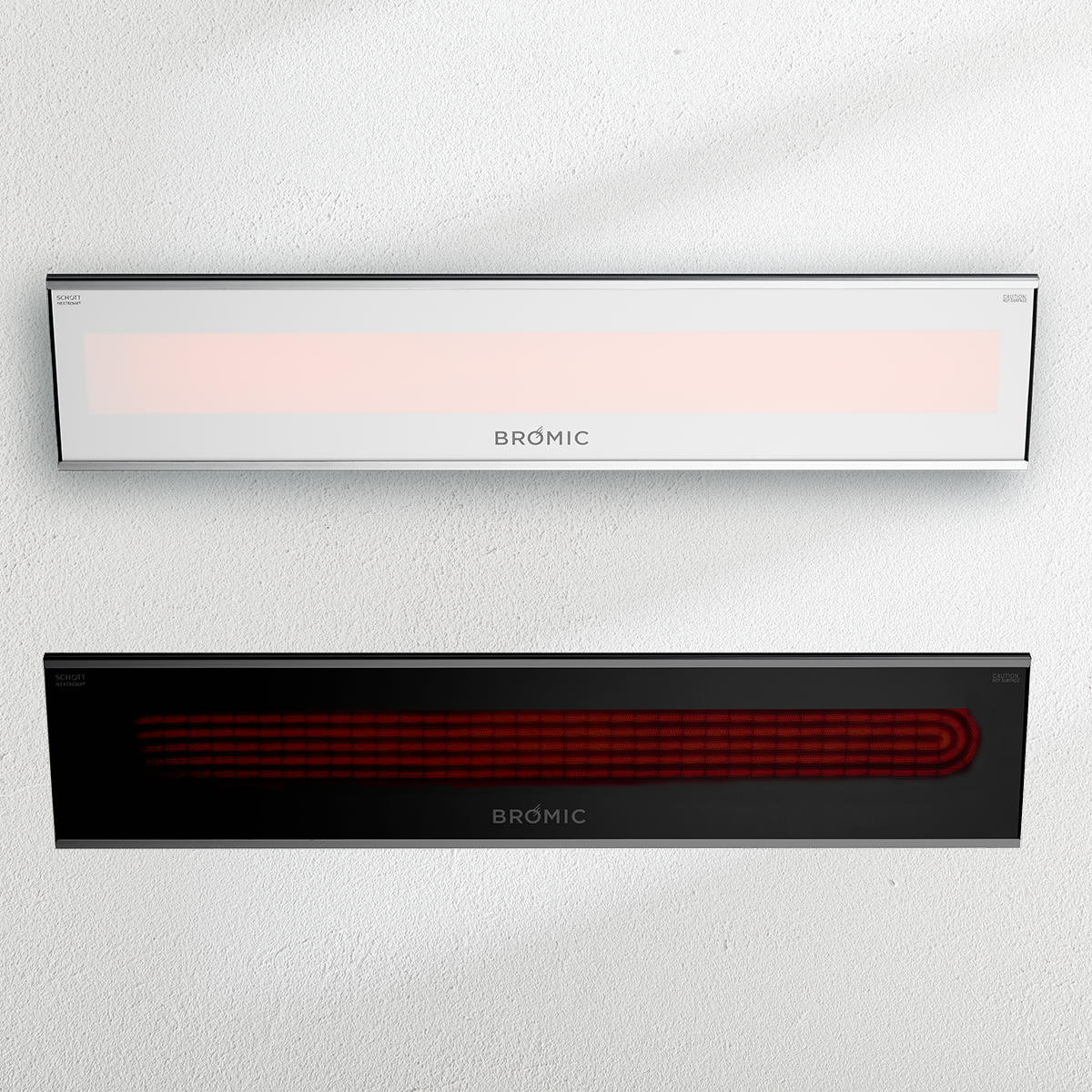

BLACK | WHITE |
BLACK | WHITE |
BLACK | WHITE |
| WEIGHT |
8kgs |
10kgs |
15kgs |
| HEAT AREA |
6 m 2 |
10 m 2 |
12 m 2 |
| NOMINAL CURRENT * |
220-240V/9.6A |
220-240V/14.2A |
220-240V/18.8A |
| MINIMUM DISTANCE TO THE FLOOR |
Wall 1.8 m
Ceiling 2.4 m |
Wall 1.8 m
Ceiling 2.4 m |
Wall 1.8 m
Ceiling 2.4 m |
| APPROVAL CERTIFICATION |
CE-Intertek 2305A0683SHA-V2 |
| WARRANTY |
3 year replacement |
| OPERATING OPTIONS |
2300W SERIES |
3400W SERIES |
4500W SERIES |
| AFFINITY ON/OFF |
✓ |
✓ |
✓ |
| AFFINITY DIMMER |
✓ |
✓ |
✓ |
*Available in different voltages: 220/240v.
**Control up to 6 heating zones independently. You can control an unlimited number of heaters per zone with a single remote control. A dimmer controller is required. The remote control has a range of 30 meters.
For more information, visit Bromic Controls .
Downloads
Installatie
Installation must be performed by a certified and licensed technician in accordance with local electrical codes. Refer to our clearance requirements and consult the installation manual for more information.
Downloads
Veelgestelde vragen
Worden de Platinum Electric-verwarmers geleverd met een bedieningselement?
No, the control can be purchased as an additional accessory.
Kan ik de Platinum Electric-verwarmer zelf installeren?
No, the heating must be installed by a certified technician.
Wat is stralingswarmte?

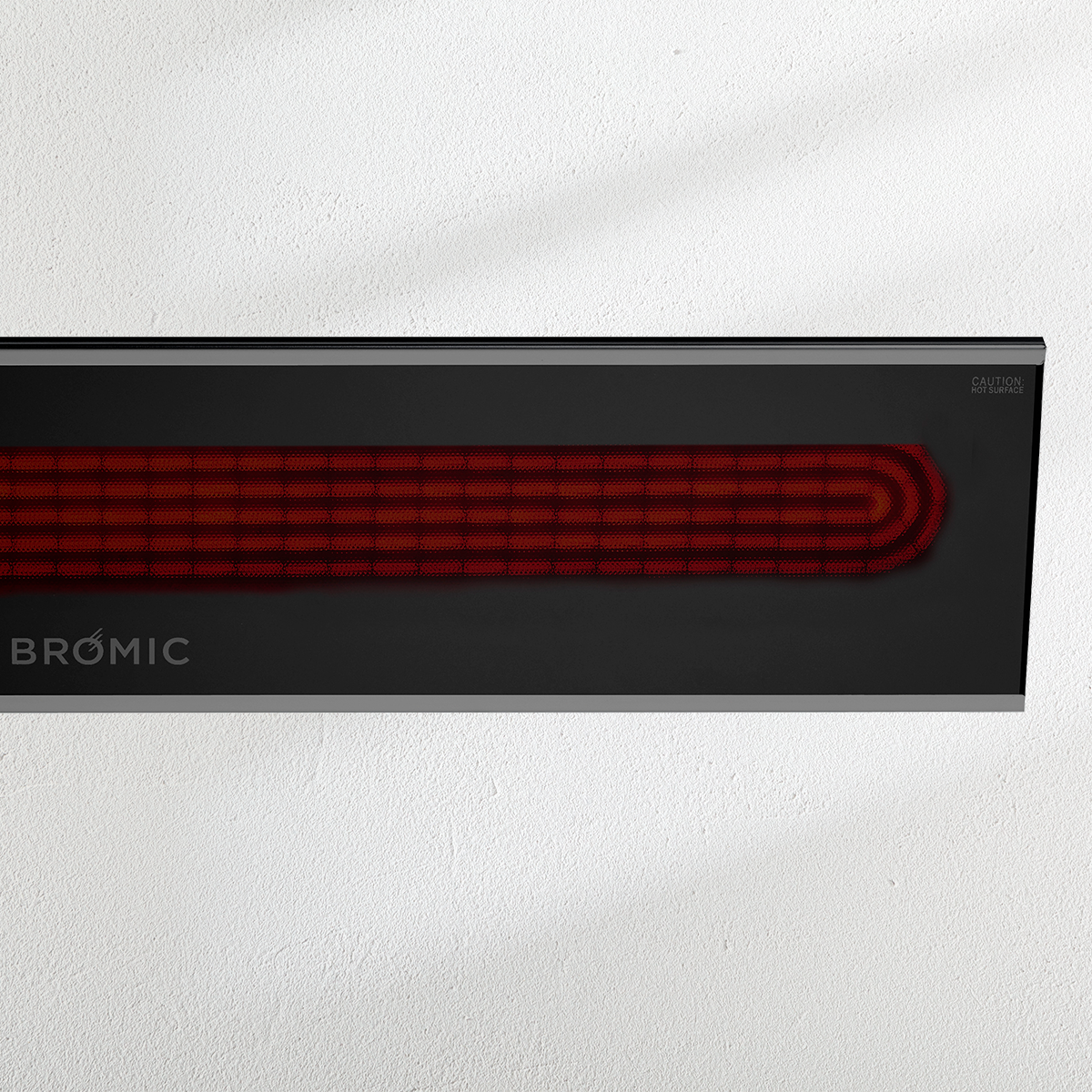

Radiant heat works like the sun. Instead of heating the air around you, it warms people and objects. This makes radiant heat a more effective outdoor heating source because it’s less affected by wind.
Kan de Platinum Electric-verwarming nat worden?
While our Platinum Electric heaters are made of premium 304 stainless steel and designed for long life, Bromic recommends mounting them under a canopy and out of direct exposure to rain, snow, and salt mist to ensure they maintain their aesthetic appeal.
Welke montagemogelijkheden zijn er?

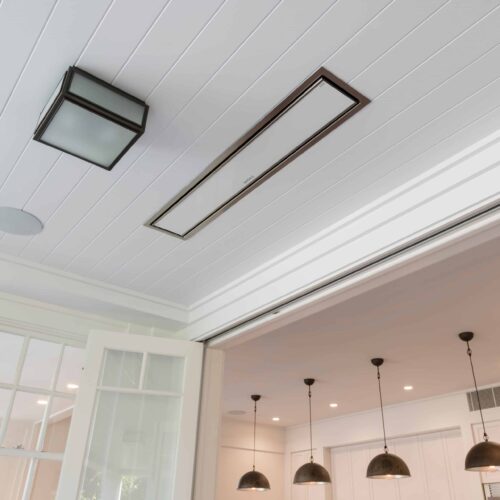

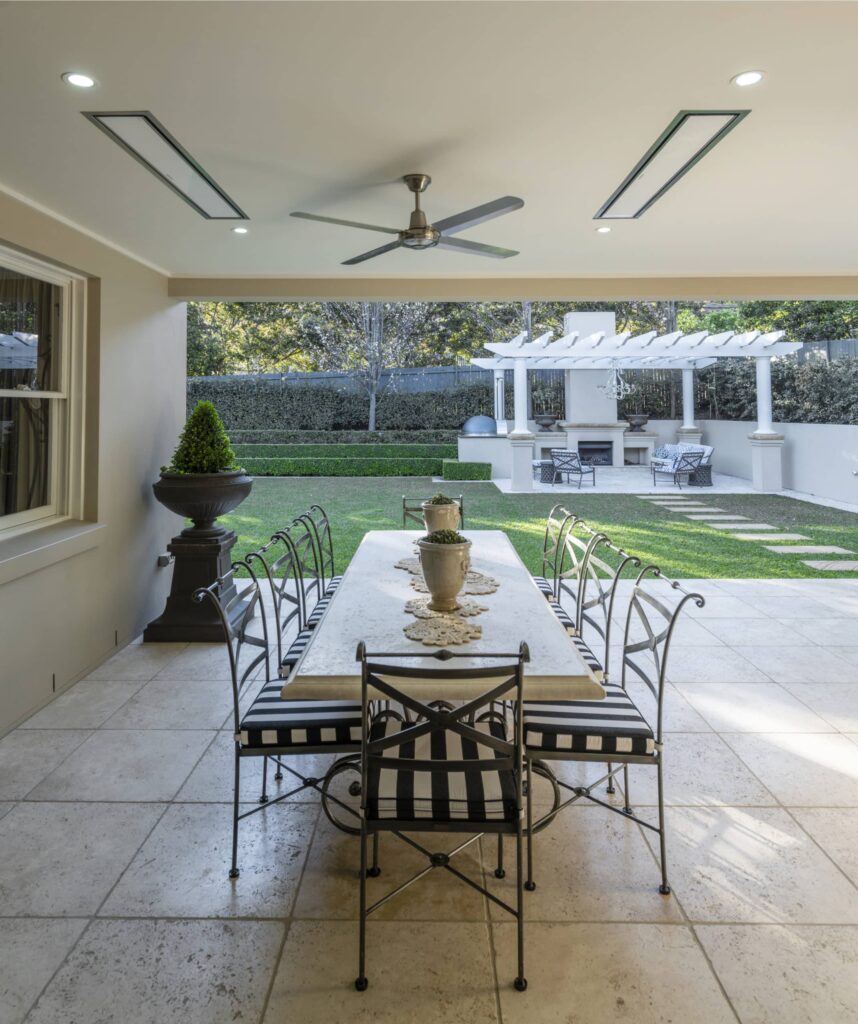

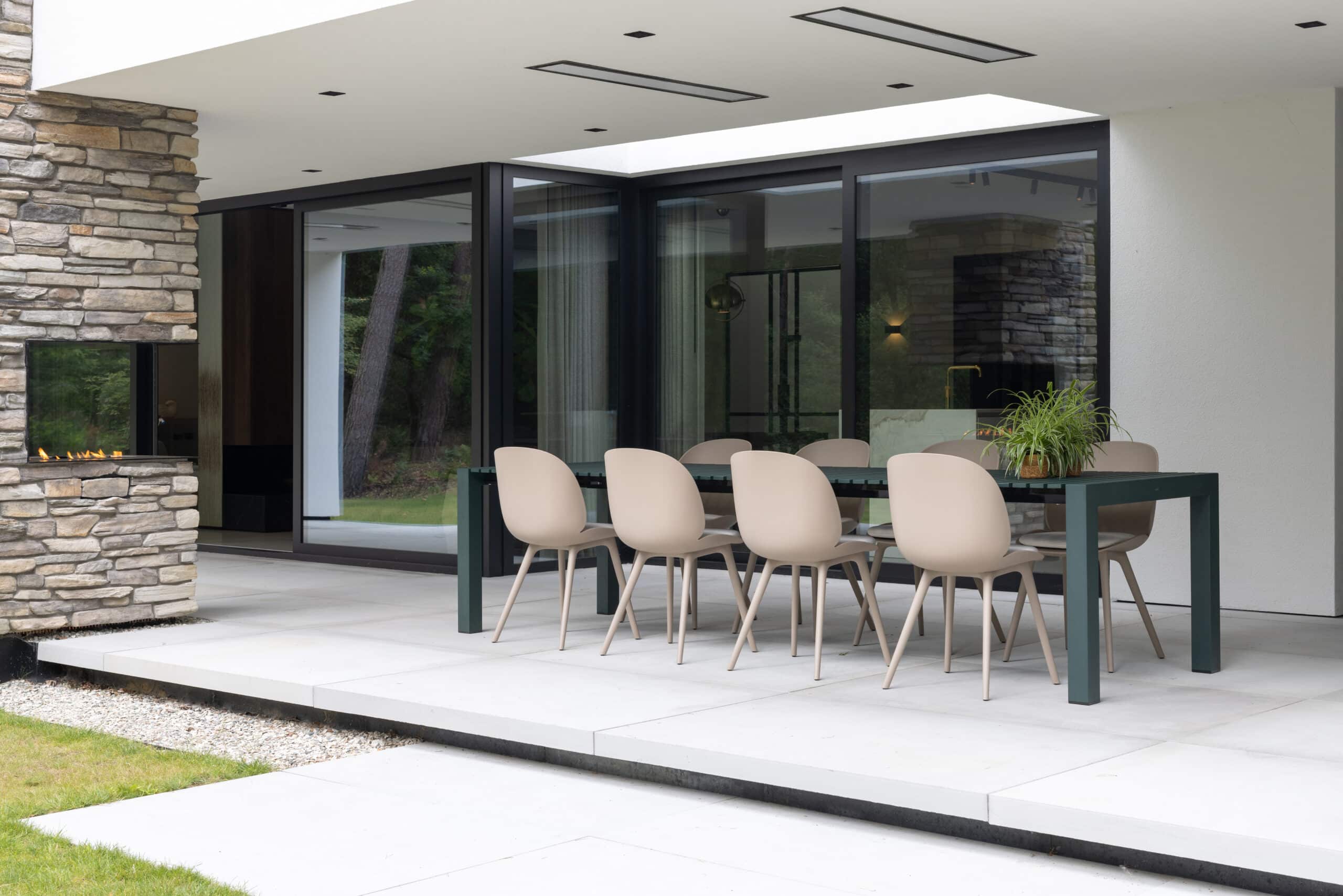

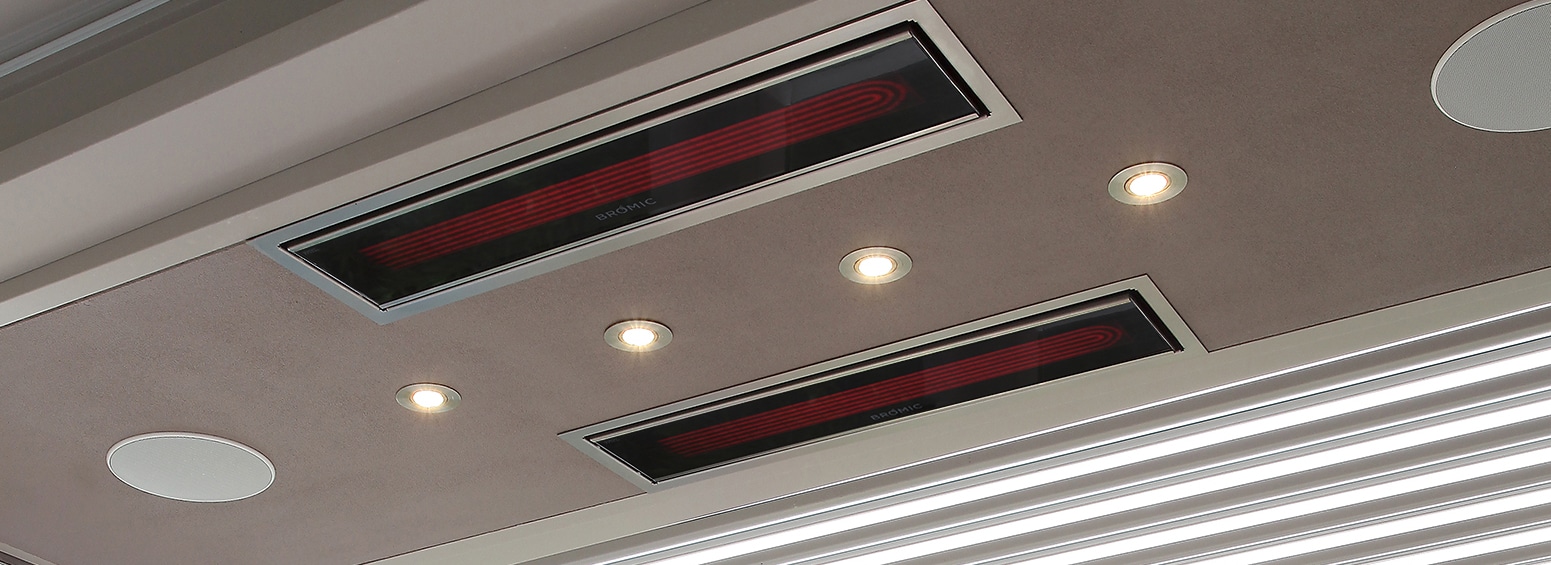

The heaters can be wall-mounted, pole-mounted, or recessed into the ceiling. Each heater comes with a 20cm stainless steel pole. Recessed kits and longer poles for high ceilings can be ordered separately. Consult the manual or contact our friendly design team to find out which installation and height is right for you.
